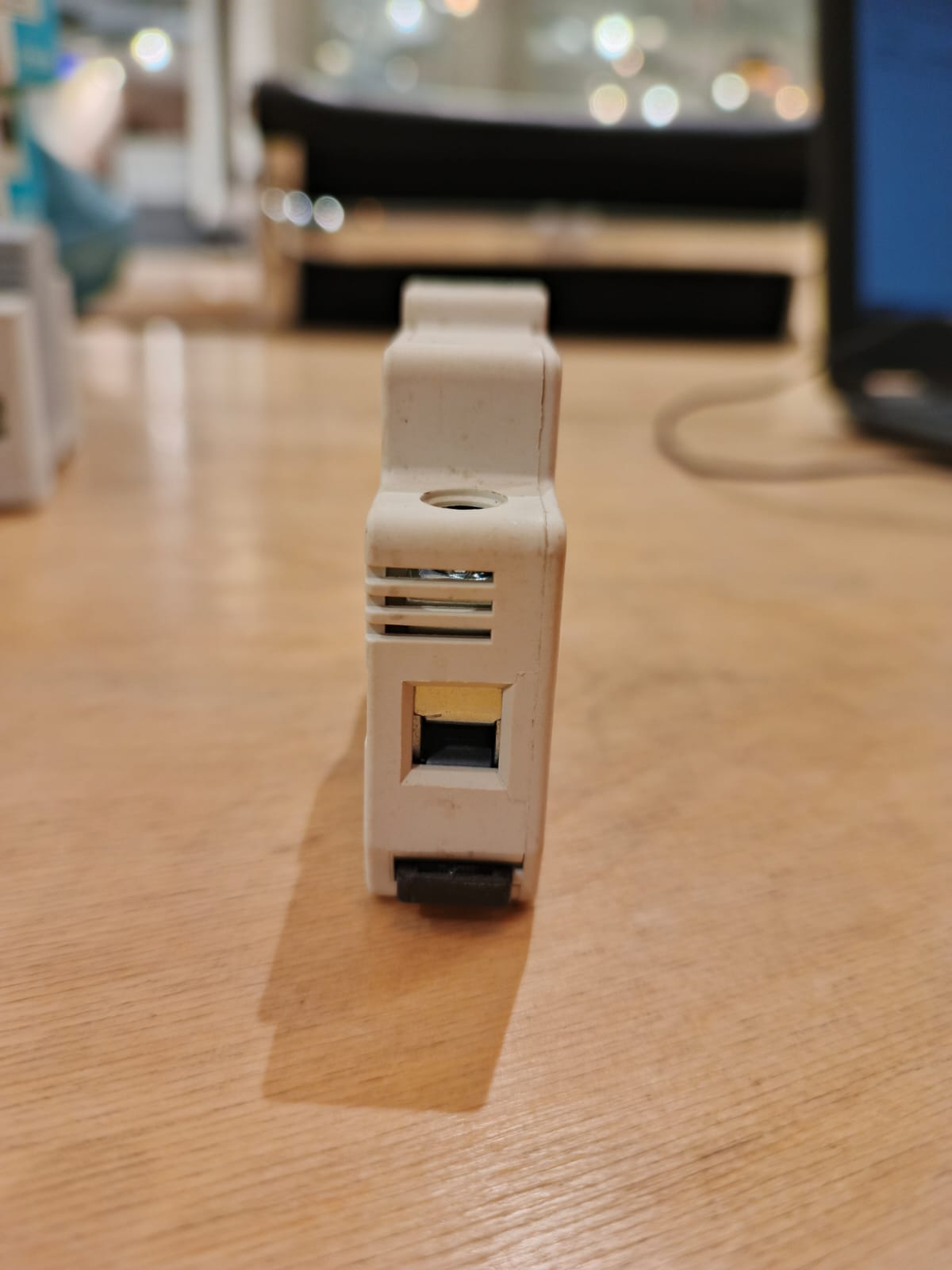

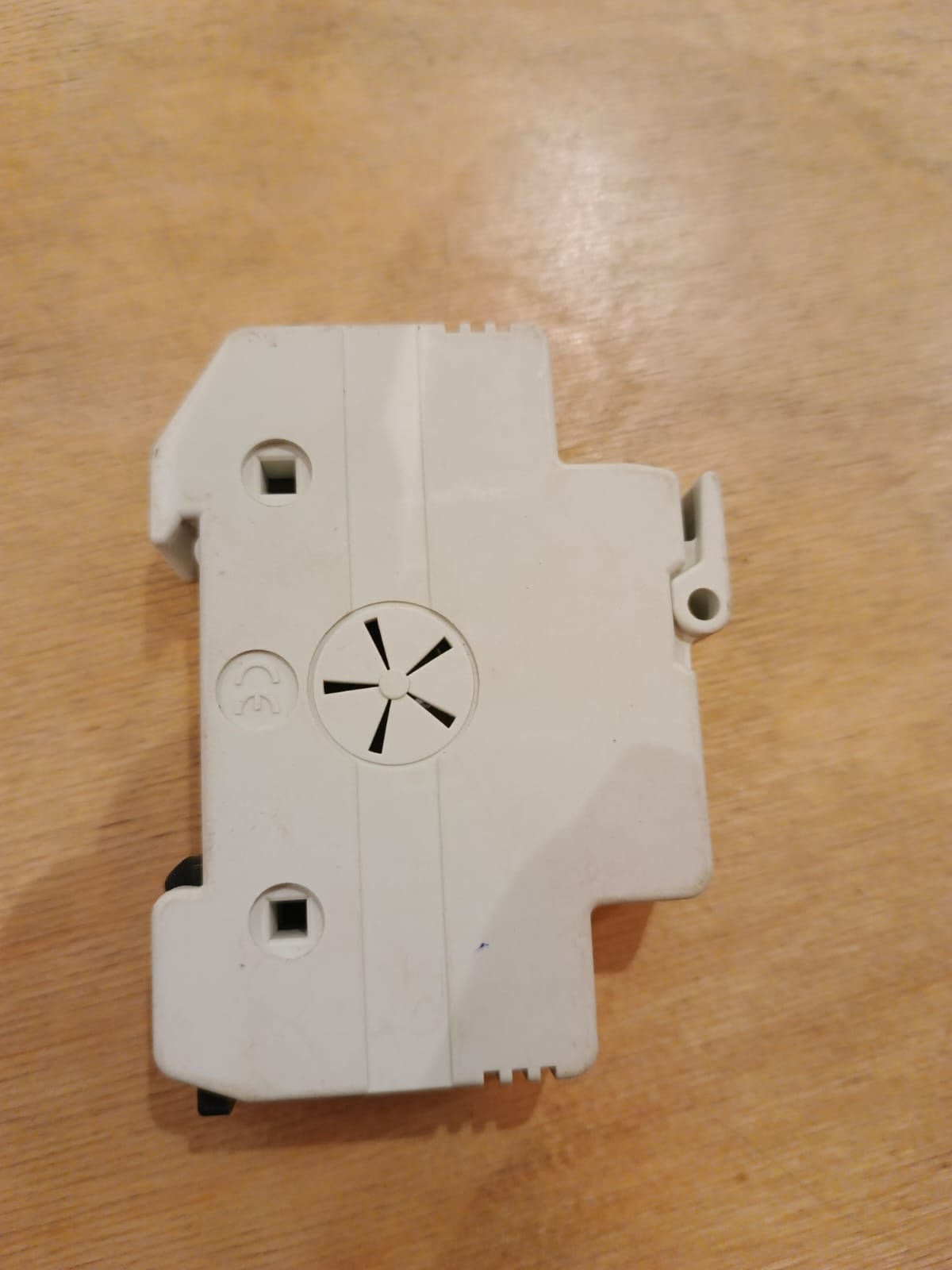

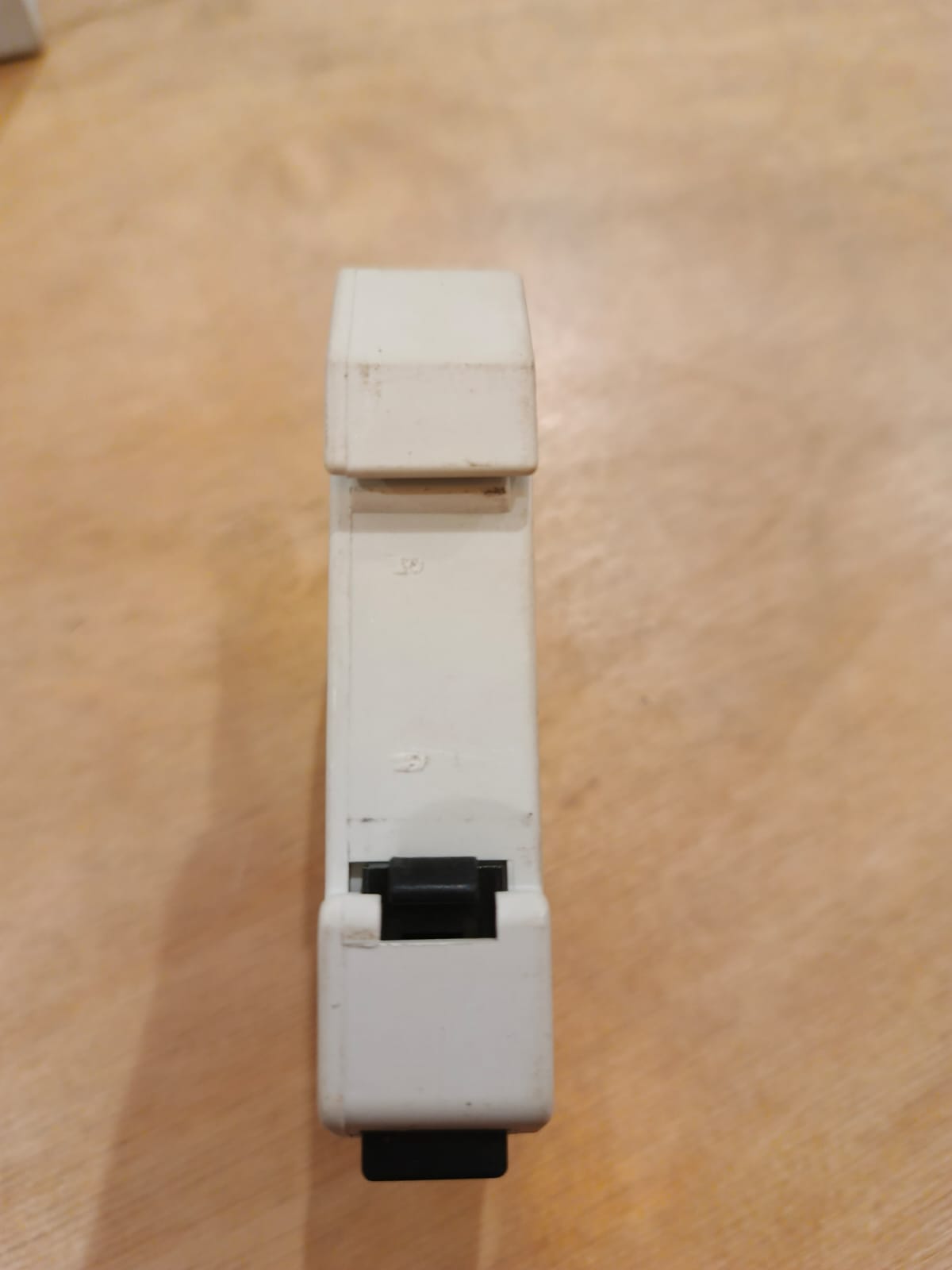

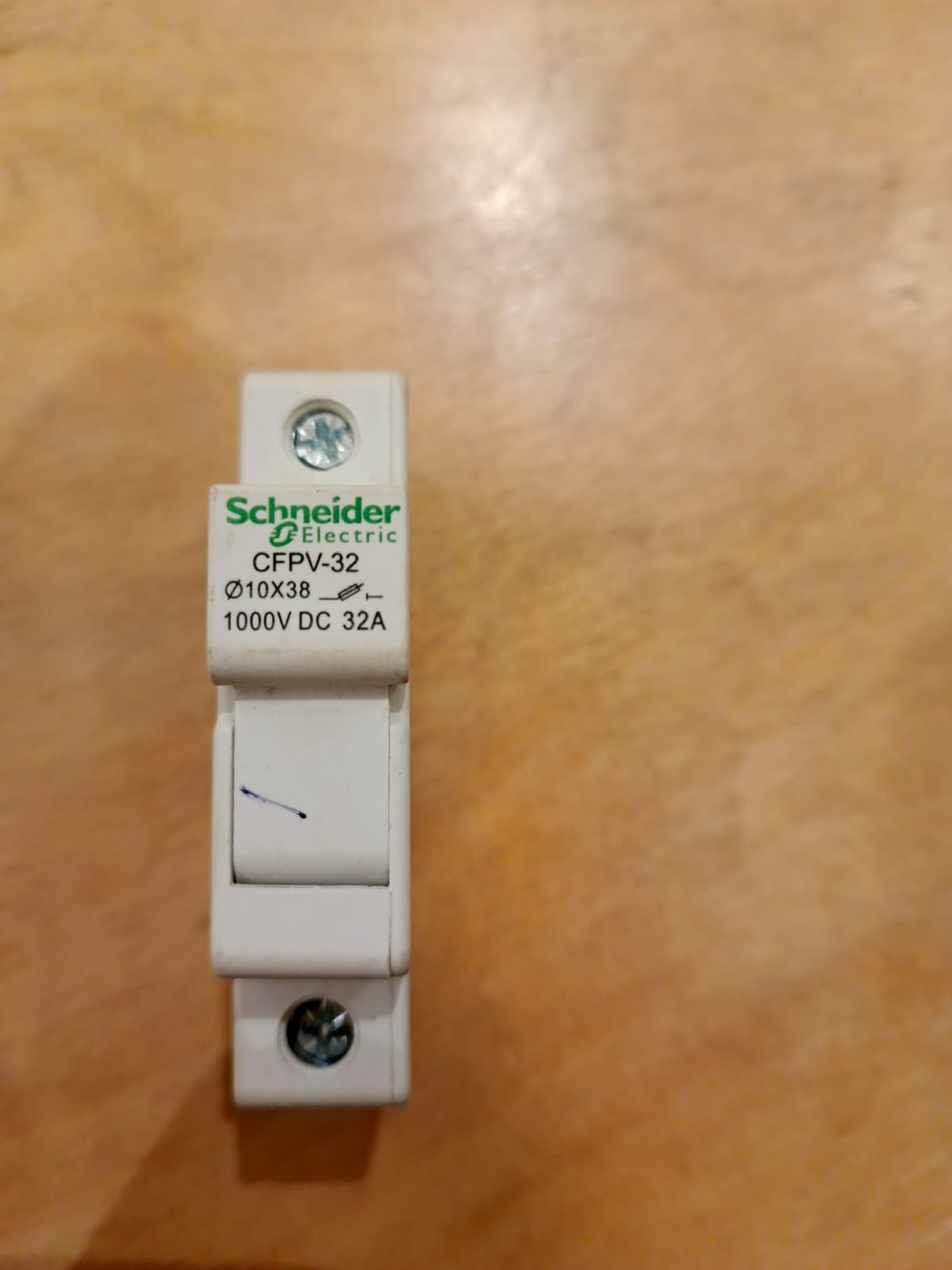

Schneider CFPV-32 Fuse Holder

Designed for photovoltaic (PV) protection systems such as solar combiner boxes and in-line PV module protection

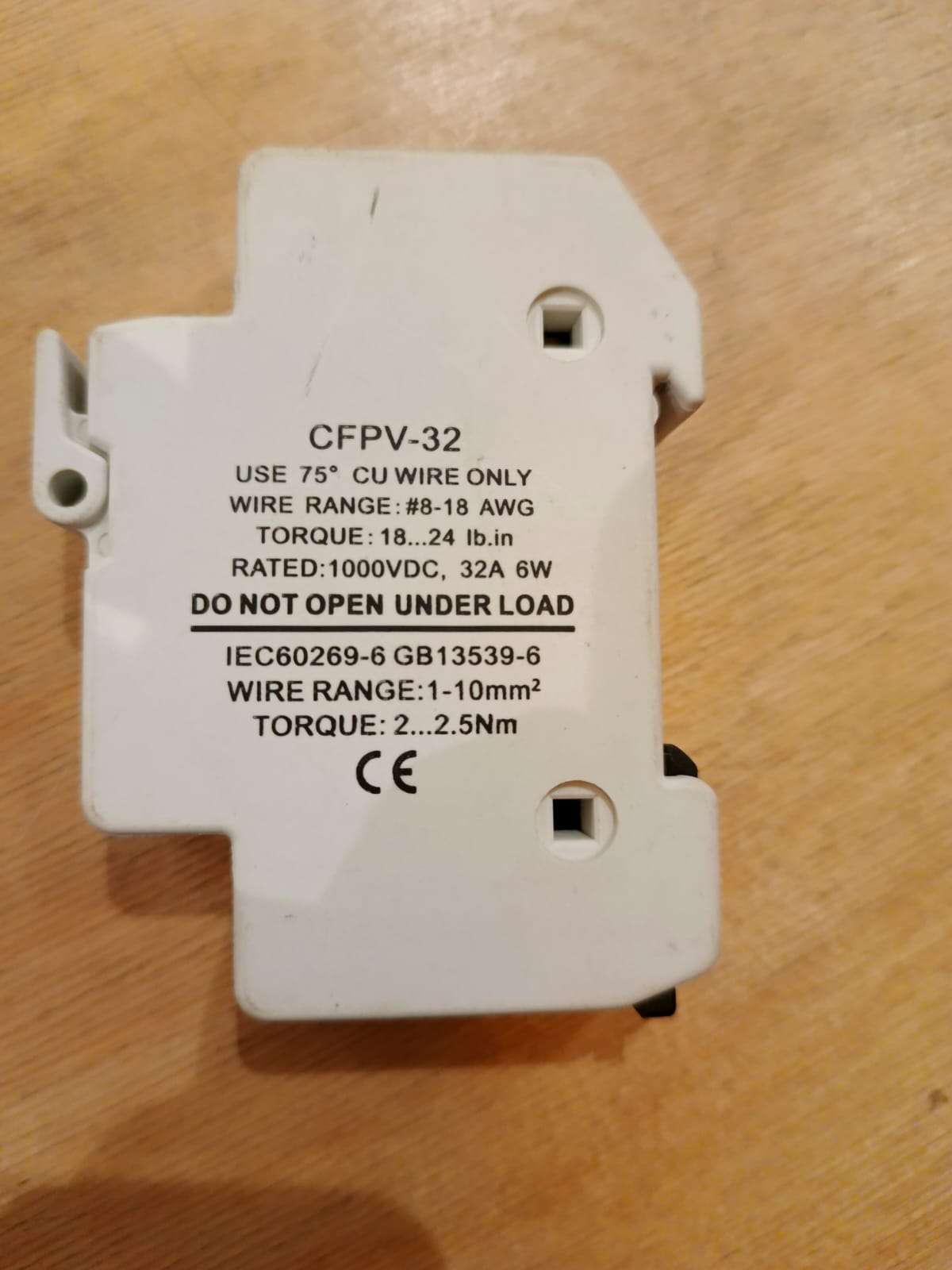

Accepts 10 × 38 mm gPV‑class fuse links, rated from 1 A up to 32 A and up to 1000 V DC

Breaking (interrupting) capacity: approximately 20 kA at 1000 V DC, offering safe interruption in fault conditions

Meets IEC 60269‑6 standard for PV fuse usage, and is classed gPV for photovoltaic string protection

Operating temperature: –30 °C to +70 °C; humidity tolerance up to 95%, suitable for typical PV installations

Physical form factor: a single‑pole DIN‑rail fuse holder (~18 × 60 × 80 mm; weight ~0.07 kg), rated IP20 (indoor cabinet use)
